할일목록(TODO) 앱 5 - chart.js 로 그룹핑한 데이터 그래프로 그리기

프로젝트/할일목록(TODO) 앱

할일목록(TODO) 앱 5 - chart.js 로 그룹핑한 데이터 그래프로 그리기

syleemomo 2023. 8. 9. 01:34

728x90

https://www.chartjs.org/docs/latest/getting-started/

Getting Started | Chart.js

Getting Started Let's get started with Chart.js! Alternatively, see the example below or check samples. Create a Chart In this example, we create a bar chart for a single dataset and render it on an HTML page. Add this code snippet to your page: You should

www.chartjs.org

https://www.chartjs.org/docs/latest/general/colors.html

Colors | Chart.js

Colors Charts support three color options: for geometric elements, you can change background and border colors; for textual elements, you can change the font color. Also, you can change the whole canvas background. Default colors If a color is not specifie

www.chartjs.org

* 주의할점

토큰은 언제나 변경되므로 새로 발급받은 다음에 수업을 진행하도록 한다.

반드시 관리자 토큰을 사용해야 한다.

CORS 에러가 나면 아래와 같이 서버쪽 코드를 변경해서 브라우저 요청(live server)을 허용하도록 한다.

const corsOptions = {
    origin: '*',
    credentials: true
}

* TODO 그룹핑 후 정렬하기 - 리팩토링

router.get('/group/:field', isAuth, isAdmin, expressAsyncHandler(async (req, res, next) => {

    if(req.params.field === 'category' || req.params.field === 'isDone'){
        const docs = await Todo.aggregate([
            {
                $group: {
                    _id: `$${req.params.field}`,
                    count: { $sum: 1 }
                }
            },
            { $sort : { _id : 1} }
        ])
        console.log(`Number Of Group: , ${docs.length}`) // 그룹 갯수
        // docs.sort((d1, d2) => d1._id - d2._id) // _id 기준으로 정렬
        res.json({ code: 200, docs })
    }else{
        res.status(400).json({ code: 400, message: 'you gave wrong field to group documents !'})
    }
}))
router.get('/group/mine/:field', isAuth, expressAsyncHandler(async (req, res, next) => { // 사용자 대쉬보드
    if(req.params.field === 'category' || req.params.field === 'isDone'){
        const docs = await Todo.aggregate([
            {
                $match: { author: new ObjectId(req.user._id) } // 내가 작성한 할일목록 필터링
            },
            {
                $group: {
                    _id: `$${req.params.field}`,
                    count: { $sum: 1 }
                }
            },
            { $sort : { _id : 1} }
        ])
        console.log(`Number Of Group: , ${docs.length}`) // 그룹 갯수
        // docs.sort((d1, d2) => d1._id - d2._id) // _id 기준으로 정렬
        res.json({ code: 200, docs })
    }else{
        res.status(400).json({ code: 400, message: 'you gave wrong field to group documents !'})
    }
}))
router.get('/group/date/:field', isAuth, isAdmin, expressAsyncHandler(async (req, res, next) => {

    if(req.params.field === 'createdAt' ||
        req.params.field === 'lastModifiedAt' ||
        req.params.field === 'finishedAt'){
        const docs = await Todo.aggregate([
            {
                $group: {
                    _id: { year: { $year: `$${req.params.field}`}, month: { $month: `$${req.params.field}` }},
                    count: { $sum: 1 }
                }
            },
            { $sort : { _id : 1} }
        ])
        console.log(`Number Of Group: ${docs.length}`) // 그룹 갯수
        // docs.sort((d1, d2) => d1._id - d2._id)
        res.json({ code: 200, docs})
        }else{
        res.status(400).json({ code: 400, message: 'you gave wrong field to group documents !' })
        }

}))
router.get('/group/mine/date/:field', isAuth, expressAsyncHandler(async (req, res, next) => {
    if(req.params.field === 'createdAt' ||
           req.params.field === 'lastModifiedAt' ||
           req.params.field === 'finishedAt'){
            const docs = await Todo.aggregate([
                {
                    $match: { author: new ObjectId(req.user._id) }
                },
                {
                    $group: {
                        _id: { year: { $year: `$${req.params.field}`}, month: { $month: `$${req.params.field}` }},
                        count: { $sum: 1 }
                    }
                },
                { $sort : { _id : 1} }
            ])
            console.log(`Number Of Group: ${docs.length}`) // 그룹 갯수
            // docs.sort((d1, d2) => d1._id - d2._id)
            res.json({ code: 200, docs})
           }else{
            res.status(400).json({ code: 400, message: 'you gave wrong field to group documents !' })
           }
}))

server > src > routes > todos.js 파일의 그룹핑 코드에서 $group 파이프라인 이후 정렬을 위하여 $sort 파이프라인을 적용하는 코드를 추가하였다. _id 기준으로 정렬하기 위하여 위와 같이 코드를 수정하였다.

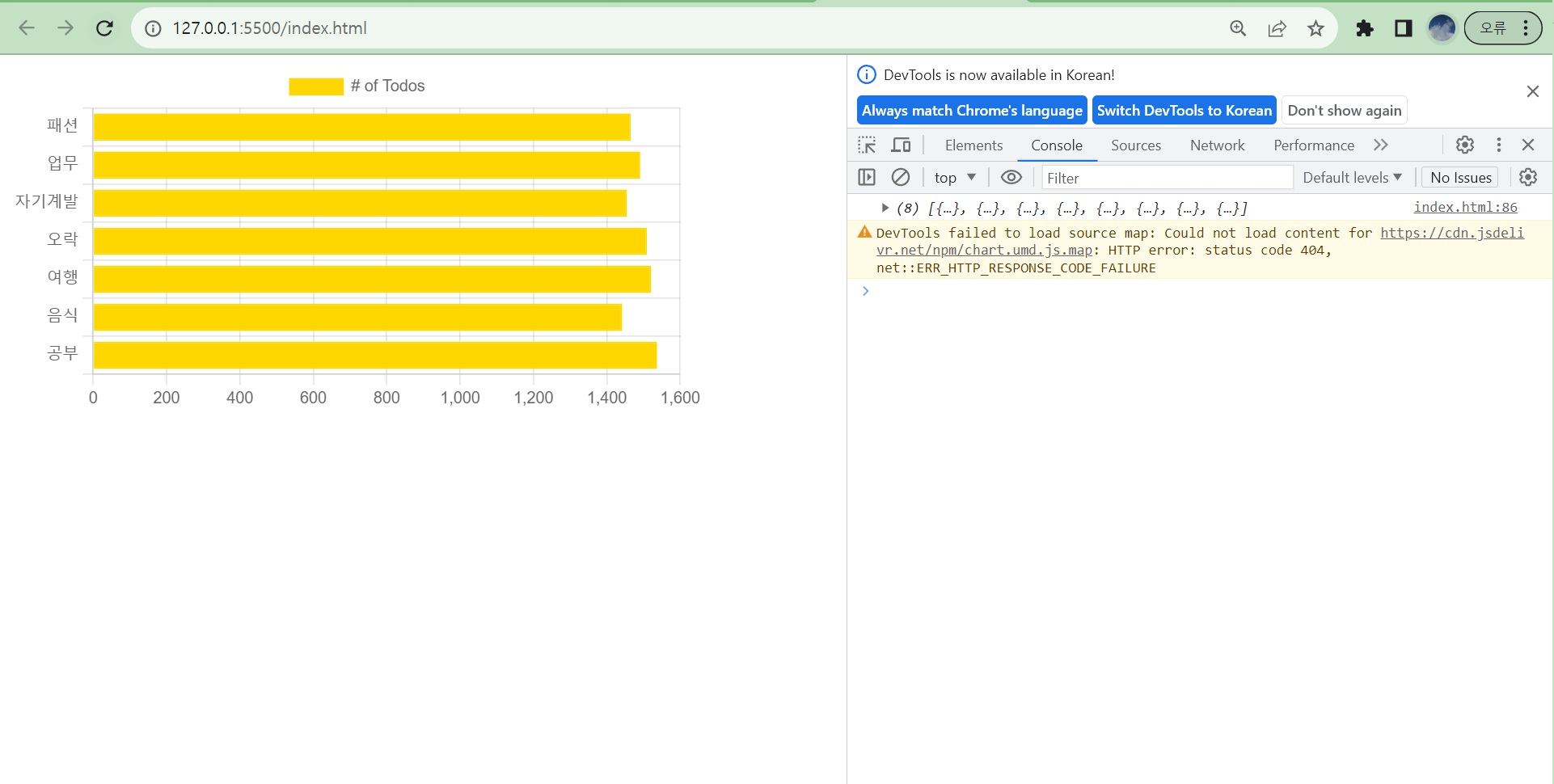

* 전체 할일목록 카테고리별 그룹핑

const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NjM5N2E1YzliYTBmNzE1ZjFlZjZjNmUiLCJuYW1lIjoic3VuQGdtYWlsLmNvbSIsInVzZXJJZCI6InN1bnJpc2UiLCJpc0FkbWluIjp0cnVlLCJjcmVhdGVkQXQiOiIyMDI0LTA1LTA3VDAwOjQ4OjI4LjM3N1oiLCJpYXQiOjE3MTUwNDMxNDksImV4cCI6MTcxNTEyOTU0OSwiaXNzIjoic3VucmlzZSJ9.2fBFKwlA_X5K-SVYXfxIAzpRy_xQcUCIbAZB22nolZw'

fetch('http://localhost:5000/api/todos/group/category', {
    headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
    }
}) // GET 방식의 요청
.then(res => res.json())
.then(data => {
    const group = data.docs

  const ctx = document.getElementById('myChart');

  new Chart(ctx, {
    type: 'bar',
    data: {
      labels: group.filter(item => item._id).map(item => item._id),
      datasets: [{
        label: '# of category',
        data: group.filter(item => item._id).map(item => item.count),
        borderWidth: 1,
        backgroundColor: '#FFD700',
      }]
    },
    options: {
      scales: {
        y: {
          beginAtZero: true
        }
      },
      plugins: {
        colors: {
          enabled: false
        }
      }
    }
  })
})

const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NjM5N2E1YzliYTBmNzE1ZjFlZjZjNmUiLCJuYW1lIjoic3VuQGdtYWlsLmNvbSIsInVzZXJJZCI6InN1bnJpc2UiLCJpc0FkbWluIjp0cnVlLCJjcmVhdGVkQXQiOiIyMDI0LTA1LTA3VDAwOjQ4OjI4LjM3N1oiLCJpYXQiOjE3MTUwNDMxNDksImV4cCI6MTcxNTEyOTU0OSwiaXNzIjoic3VucmlzZSJ9.2fBFKwlA_X5K-SVYXfxIAzpRy_xQcUCIbAZB22nolZw'

fetch('http://localhost:5000/api/todos/group/isDone', {
    headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
    }
}) // GET 방식의 요청
.then(res => res.json())
.then(data => {
    const group = data.docs

  const ctx = document.getElementById('myChart');

  new Chart(ctx, {
    type: 'bar',
    data: {
      labels: group.filter(item => item._id !== undefined && item._id !== null).map(item => item._id ? "종료" : "진행중"),
      datasets: [{
        label: '# of category',
        data: group.filter(item => item._id !== undefined && item._id !== null).map(item => item.count),
        borderWidth: 1,
        backgroundColor: '#FFD700',
      }]
    },
    options: {
      scales: {
        y: {
          beginAtZero: true
        }
      },
      plugins: {
        colors: {
          enabled: false
        }
      }
    }
  })
})

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGNlMjVlNDc3ZjM5OTA4NjJkYTFhYTEiLCJuYW1lIjoi7YOc7JaRIiwiZW1haWwiOiJzdW5AZ21haWwuY29tIiwidXNlcklkIjoic3VucmlzZSIsImlzQWRtaW4iOnRydWUsImNyZWF0ZWRBdCI6IjIwMjMtMDgtMDVUMTA6MzU6MTYuNTU0WiIsImlhdCI6MTY5MTUxMjc3MywiZXhwIjoxNjkxNTk5MTczLCJpc3MiOiJzdW5yaXNlIn0.H9k4LaU0uKcfZ7UggBeSVLgmv_wSjbAS1YXXJs78arg'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/date/createdAt', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'bar',
        data: {
          labels: group.map(item => `${item._id.year}년 ${item._id.month}`),
          datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFD700',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGNlMjVlNDc3ZjM5OTA4NjJkYTFhYTEiLCJuYW1lIjoi7YOc7JaRIiwiZW1haWwiOiJzdW5AZ21haWwuY29tIiwidXNlcklkIjoic3VucmlzZSIsImlzQWRtaW4iOnRydWUsImNyZWF0ZWRBdCI6IjIwMjMtMDgtMDVUMTA6MzU6MTYuNTU0WiIsImlhdCI6MTY5MTUxMjc3MywiZXhwIjoxNjkxNTk5MTczLCJpc3MiOiJzdW5yaXNlIn0.H9k4LaU0uKcfZ7UggBeSVLgmv_wSjbAS1YXXJs78arg'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/date/lastModifiedAt', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'bar',
        data: {
          labels: group.map(item => `${item._id.year}년 ${item._id.month}`),
          datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFD700',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGNlMjVlNDc3ZjM5OTA4NjJkYTFhYTEiLCJuYW1lIjoi7YOc7JaRIiwiZW1haWwiOiJzdW5AZ21haWwuY29tIiwidXNlcklkIjoic3VucmlzZSIsImlzQWRtaW4iOnRydWUsImNyZWF0ZWRBdCI6IjIwMjMtMDgtMDVUMTA6MzU6MTYuNTU0WiIsImlhdCI6MTY5MTUxMjc3MywiZXhwIjoxNjkxNTk5MTczLCJpc3MiOiJzdW5yaXNlIn0.H9k4LaU0uKcfZ7UggBeSVLgmv_wSjbAS1YXXJs78arg'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/date/finishedAt', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'bar',
        data: {
          labels: group.map(item => `${item._id.year}년 ${item._id.month}`),
          datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFD700',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

만약 날짜별 정렬이 제대로 되어 있지 않으면 프론트쪽 코드에서 then 메서드 안에서 아래 코드를 추가한다.

const group = data.docs
console.log(group)

group.sort((a, b) => {
  if(a._id.year > b._id.year) return 1
  else if(a._id.year < b._id.year) return -1
  if(a._id.month > b._id.month) return 1
  else if(a._id.month < b._id.month) return -1
  else 0
})

// 차트 그리기

* 특정 사용자의 카테고리별 그룹핑

관리자가 아닌 특정 사용자의 토큰으로 교체해서 서버에 요청을 보내도록 한다.

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGQyMzczMTA0Mzk4MmQ2YTBhOTkzYTYiLCJuYW1lIjoiaGVjYnoiLCJlbWFpbCI6Imx3dmJuZXhAZ21haWwuY29tIiwidXNlcklkIjoicGlldXhuZ3FiZCIsImlzQWRtaW4iOmZhbHNlLCJjcmVhdGVkQXQiOiIyMDIzLTA4LTA4VDEyOjM4OjA5LjY1MloiLCJpYXQiOjE2OTE1MDU5NTksImV4cCI6MTY5MTU5MjM1OSwiaXNzIjoic3VucmlzZSJ9.Rfv2hJsRM9uWwtpq7R3IpwEViHi7YYZsFz7GZguWq2A'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/mine/category', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'bar',
        data: {
          labels: group.map(item => item._id),
          datasets: [{
            label: '# of Todos By',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFB1C1',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

* 특정 사용자의 할일종료 여부별 그룹핑

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGQyMzczMTA0Mzk4MmQ2YTBhOTkzYTYiLCJuYW1lIjoiaGVjYnoiLCJlbWFpbCI6Imx3dmJuZXhAZ21haWwuY29tIiwidXNlcklkIjoicGlldXhuZ3FiZCIsImlzQWRtaW4iOmZhbHNlLCJjcmVhdGVkQXQiOiIyMDIzLTA4LTA4VDEyOjM4OjA5LjY1MloiLCJpYXQiOjE2OTE1MDU5NTksImV4cCI6MTY5MTU5MjM1OSwiaXNzIjoic3VucmlzZSJ9.Rfv2hJsRM9uWwtpq7R3IpwEViHi7YYZsFz7GZguWq2A'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/mine/isDone', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'bar',
        data: {
          labels: group.map(item => item._id ? "종료": "진행중"),
          datasets: [{
            label: '# of Todos By',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFB1C1',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

* 특정 사용자의 TODO 생성날짜별 그룹핑

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGQyMzczMTA0Mzk4MmQ2YTBhOTkzYTYiLCJuYW1lIjoiaGVjYnoiLCJlbWFpbCI6Imx3dmJuZXhAZ21haWwuY29tIiwidXNlcklkIjoicGlldXhuZ3FiZCIsImlzQWRtaW4iOmZhbHNlLCJjcmVhdGVkQXQiOiIyMDIzLTA4LTA4VDEyOjM4OjA5LjY1MloiLCJpYXQiOjE2OTE1MDU5NTksImV4cCI6MTY5MTU5MjM1OSwiaXNzIjoic3VucmlzZSJ9.Rfv2hJsRM9uWwtpq7R3IpwEViHi7YYZsFz7GZguWq2A'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/mine/date/createdAt', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'bar',
        data: {
          labels: group.map(item => `${item._id.year}년 ${item._id.month}월`),
          datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFB1C1',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGQyMzczMTA0Mzk4MmQ2YTBhOTkzYTYiLCJuYW1lIjoiaGVjYnoiLCJlbWFpbCI6Imx3dmJuZXhAZ21haWwuY29tIiwidXNlcklkIjoicGlldXhuZ3FiZCIsImlzQWRtaW4iOmZhbHNlLCJjcmVhdGVkQXQiOiIyMDIzLTA4LTA4VDEyOjM4OjA5LjY1MloiLCJpYXQiOjE2OTE1MDU5NTksImV4cCI6MTY5MTU5MjM1OSwiaXNzIjoic3VucmlzZSJ9.Rfv2hJsRM9uWwtpq7R3IpwEViHi7YYZsFz7GZguWq2A'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/mine/date/lastModifiedAt', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'bar',
        data: {
          labels: group.map(item => `${item._id.year}년 ${item._id.month}월`),
          datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFB1C1',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGQyMzczMTA0Mzk4MmQ2YTBhOTkzYTYiLCJuYW1lIjoiaGVjYnoiLCJlbWFpbCI6Imx3dmJuZXhAZ21haWwuY29tIiwidXNlcklkIjoicGlldXhuZ3FiZCIsImlzQWRtaW4iOmZhbHNlLCJjcmVhdGVkQXQiOiIyMDIzLTA4LTA4VDEyOjM4OjA5LjY1MloiLCJpYXQiOjE2OTE1MDU5NTksImV4cCI6MTY5MTU5MjM1OSwiaXNzIjoic3VucmlzZSJ9.Rfv2hJsRM9uWwtpq7R3IpwEViHi7YYZsFz7GZguWq2A'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/mine/date/finishedAt', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'bar',
        data: {
          labels: group.map(item => `${item._id.year}년 ${item._id.month}월`),
          datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFB1C1',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

* 도넛 그래프 그리기

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGNlMjVlNDc3ZjM5OTA4NjJkYTFhYTEiLCJuYW1lIjoi7YOc7JaRIiwiZW1haWwiOiJzdW5AZ21haWwuY29tIiwidXNlcklkIjoic3VucmlzZSIsImlzQWRtaW4iOnRydWUsImNyZWF0ZWRBdCI6IjIwMjMtMDgtMDVUMTA6MzU6MTYuNTU0WiIsImlhdCI6MTY5MTUxMjc3MywiZXhwIjoxNjkxNTk5MTczLCJpc3MiOiJzdW5yaXNlIn0.H9k4LaU0uKcfZ7UggBeSVLgmv_wSjbAS1YXXJs78arg'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/date/finishedAt', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'doughnut',
        data: {
          labels: group.map(item => `${item._id.year}년 ${item._id.month}일`),
          datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: ['orange', 'purple', 'skyblue', 'green'  ]
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

* 라인 그래프 그리기

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>TODO 분석그래프</title>
</head>
<body>
  <div>
    <canvas id="myChart"></canvas>
  </div>
  <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
  <script>
    const token = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJfaWQiOiI2NGNlMjVlNDc3ZjM5OTA4NjJkYTFhYTEiLCJuYW1lIjoi7YOc7JaRIiwiZW1haWwiOiJzdW5AZ21haWwuY29tIiwidXNlcklkIjoic3VucmlzZSIsImlzQWRtaW4iOnRydWUsImNyZWF0ZWRBdCI6IjIwMjMtMDgtMDVUMTA6MzU6MTYuNTU0WiIsImlhdCI6MTY5MTUxMjc3MywiZXhwIjoxNjkxNTk5MTczLCJpc3MiOiJzdW5yaXNlIn0.H9k4LaU0uKcfZ7UggBeSVLgmv_wSjbAS1YXXJs78arg'
    const ctx = document.getElementById('myChart');

    fetch('http://127.0.0.1:5000/api/todos/group/date/finishedAt', {
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${token}`
      }
    })
    .then(res => res.json())
    .then(data => {
      const group = data.docs
      console.log(group)

      // 차트 그리기
      new Chart(ctx, {
        type: 'line',
        data: {
          labels: group.map(item => `${item._id.year}년 ${item._id.month}일`),
          datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFD700',
            borderColor: '#FFD700',
          }]
        },
        options: {
          scales: {
            y: {
              beginAtZero: true
            }
          },
          plugins: {
            colors: {
              enabled: true
            }
          }
        }
      });

    })
  </script>
</body>
</html>

* 년, 월 오름차순 정렬하기

server > src > routes > todos.js 파일의 해당 부분을 아래와 같이 수정한다.

router.get('/group/date/:field', isAuth, expressAsyncHandler(async (req, res, next) => { // 어드민 페이지
  if(!req.user.isAdmin){
    res.status(401).json({ code: 401, message: 'You are not authorized to use this service !'})
  }else{
    if(req.params.field === 'createdAt' || req.params.field === 'lastModifiedAt' || req.params.field === 'finishedAt'){
      const docs = await Todo.aggregate([
        {
          $group: {
            _id: { year: { $year: `$${req.params.field}` }, month: { $month: `$${req.params.field}` } },
            count: { $sum: 1 }
          }
        },
        { $sort : { _id : 1 } } // 날짜 오름차순 정렬
      ])

      console.log(`Number Of Group: ${docs.length}`) // 그룹 갯수
      docs.sort((d1, d2) => d1._id - d2._id)
      res.json({ code: 200, docs})
    }else{
      res.status(204).json({ code: 204, message: 'No Content'})
    }
  }
}))

router.get('/group/mine/date/:field', isAuth, expressAsyncHandler(async (req, res, next) => { // 어드민 페이지
  if(req.params.field === 'createdAt' || req.params.field === 'lastModifiedAt' || req.params.field === 'finishedAt'){
    const docs = await Todo.aggregate([
      {
        $match: { author: new ObjectId(req.user._id) }
      },
      {
        $group: {
          _id: { year: { $year: `$${req.params.field}` }, month: { $month: `$${req.params.field}` } },
          count: { $sum: 1 }
        }
      },
      { $sort : { _id : 1 } } // 날짜 오름차순 정렬
    ])

    console.log(`Number Of Group: ${docs.length}`) // 그룹 갯수
    docs.sort((d1, d2) => d1._id - d2._id)
    res.json({ code: 200, docs})
  }else{
    res.status(204).json({ code: 204, message: 'No Content'})
  }
}))

그룹핑 결과를 날짜별로 오름차순 정렬한다.

chart.js - 전체 할일목록 종료 날짜별 라인 그래프 (오름차순 정렬)

* 프로그램적으로 로그인후 그룹핑하기

랜덤으로 생성한 사용자의 이메일, 비밀번호를 몽고 DB 데이터베이스에서 찾아서 로그인하도록 한다.

const BASE_URL = '127.0.0.1:5000'
async function login(email, password){
    const userJSON = await fetch(`http://${BASE_URL}/api/users/login`, {
        headers: {
            'Content-Type': 'application/json'
        },
        method: 'POST',
        body: JSON.stringify({
            email, password
        })
    })
    const user = await userJSON.json()
    return user
}
async function getGroups(field, token){
    const groupJSON = await fetch(`http://${BASE_URL}/api/todos/group/mine/${field}`, {
        headers: {
            'Content-Type': 'application/json',
            'Authorization': `Bearer ${token}`
        },
    })
    const group = await groupJSON.json()
    return group.docs
}
async function fetchData(){
    const user = await login("enwrvuf@gmail.com", "ajtgnhhpesywh")
    const group = await getGroups("category", user.token)
    return group
}
fetchData()
.then(group => {
    console.log(group)

    // 차트 그리기
    const ctx = document.getElementById('myChart');
    new Chart(ctx, {
        type: 'line',
        data: {
        labels: group.map(item => item._id),
        datasets: [{
            label: '# of Todos',
            data: group.map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFD700',
            borderColor: '#FFD700',
        }]
        },
        options: {
        scales: {
            y: {
            beginAtZero: true
            }
        },
        plugins: {
            colors: {
            enabled: true
            }
        }
        }
    });
})

* 관리자 사용자로 전체목록 그룹핑하고 그래프로 보여주기

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <div>
        <canvas id="myChart"></canvas>
    </div>
    <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
    <script>
        async function login(email, password){
            const user = await fetch('http://127.0.0.1:5000/api/users/login', {
                            headers: {
                                'Content-Type': 'application/json'
                            },
                            method: 'POST',
                            body: JSON.stringify({
                                email, password
                            })
                        }).then(res => res.json())
            return user
        }
        async function getGroups(field, token){
            const group = await fetch(`http://127.0.0.1:5000/api/todos/group/${field}`, {
                                headers: {
                                    'Content-Type': 'application/json',
                                    'Authorization': `Bearer ${token}`
                                }
                            }).then(res => res.json())
            return group
        }
        async function fetchData(){
            const user = await login("youna@gmail.com", "yona1234") // 로그인
            let group = await getGroups('category', user.token)
            group = group.docs
            return group
        }
        fetchData()
        .then(group => {
            console.log(group)

            // 차트 그리기
            const ctx = document.getElementById('myChart');
            new Chart(ctx, {
                type: 'line',
                data: {
                labels: group.filter(item => item._id).map(item => item._id),
                datasets: [{
                    label: '# of Todos',
                    data: group.filter(item => item._id).map(item => item.count),
                    borderWidth: 1,
                    backgroundColor: '#FFD700',
                    borderColor: '#FFD700',
                }]
                },
                options: {
                scales: {
                    y: {
                    beginAtZero: true
                    }
                },
                plugins: {
                    colors: {
                    enabled: true
                    }
                }
                }
            });

        })
    </script>
</body>
</html>

몽고디비에 10000개의 TODO 를 생성해서 전체 할일목록을 카테고리별로 그룹핑해보았다.

* 유니버셜 API 테스트 코드

const BASE_URL = 'http://127.0.0.1:5000' // 도메인 주소
const email = 'enwrvuf@gmail.com' // 사용자 연락처
const password = 'ajtgnhhpes123@' // 사용자 비밀번호
const graphType = 'line' // 그래프 종류
const field = 'createdAt' // 그룹핑 기준

async function login(email, password){
    const userJSON = await fetch(`${BASE_URL}/api/users/login`, {
        headers: {
            'Content-Type': 'application/json'
        },
        method: 'POST',
        body: JSON.stringify({
            email, password
        })
    })
    const user = await userJSON.json()
    return user
}
async function getGroups(field, user){
    let base_url = `${BASE_URL}/api/todos/group`
    if(!user.isAdmin){
        base_url += '/mine'
    }
    if(field === 'createdAt' || field === 'lastModifiedAt' || field === 'finishedAt'){
        base_url += '/date'
    }
    const groupJSON = await fetch(`${base_url}/${field}`, {
        headers: {
            'Content-Type': 'application/json',
            'Authorization': `Bearer ${user.token}`
        }
    })
    const group = await groupJSON.json()
    return group.docs
}
async function fetchData(email, password, field){
    const user = await login(email, password) // 로그인
    const group = await getGroups(field, user) // 그룹핑
    return group
}
function displayChart(type, group){
    const ctx = document.getElementById('myChart')
    new Chart(ctx, {
        type,
        data: {
        labels: group
        .filter(item => item._id !== null && item._id !== undefined && item._id !== '')
        .map(item => item._id.year ? `${item._id.year}년 ${item._id.month}월`
             : typeof item._id === 'boolean' ? (item._id === true ? "종료" : "진행중")
             : item._id),
        datasets: [{
            label: '# of Todos',
            data: group
            .filter(item => item._id !== null && item._id !== undefined && item._id !== '')
            .map(item => item.count),
            borderWidth: 1,
            backgroundColor: '#FFD700',
            borderColor: '#FFD700',
        }]
        },
        options: {
        scales: {
            y: {
            beginAtZero: true
            }
        },
        plugins: {
            colors: {
            enabled: true
            }
        }
        }
    });

}

fetchData(email, password, field)
.then(group => {
    console.log(group)
    displayChart(graphType, group)
})

* 가로방향 그래프 그리기

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <div>
        <canvas id="myChart"></canvas>
    </div>
    <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
    <script>
        const email = "ycukkza@gmail.com" // 사용자 연락처
        const password = "lvnqlofkwmddh"  // 사용자 비밀번호
        const graphType = 'bar'           // 그래프 종류
        const field = 'category'          // 그룹핑 기준

        async function login(email, password){
            const user = await fetch('http://127.0.0.1:5000/api/users/login', {
                            headers: {
                                'Content-Type': 'application/json'
                            },
                            method: 'POST',
                            body: JSON.stringify({
                                email, password
                            })
                        }).then(res => res.json())
            return user
        }
        async function getGroups(field, user){
            let baseUrl = 'http://127.0.0.1:5000/api/todos/group'
            if(!user.isAdmin){
                baseUrl += '/mine'
            }
            if(field === 'createdAt' || field === 'lastModifiedAt' || field === 'finishedAt'){
                baseUrl += '/date'
            }
            const group = await fetch(`${baseUrl}/${field}`, {
                                headers: {
                                    'Content-Type': 'application/json',
                                    'Authorization': `Bearer ${user.token}`
                                }
                            }).then(res => res.json())
            return group
        }
        async function fetchData(email, password, field){
            const user = await login(email, password) // 로그인
            let group = await getGroups(field, user)
            group = group.docs
            return group
        }
        function displayChart(type, group){
            // 차트 그리기
            const ctx = document.getElementById('myChart');
            new Chart(ctx, {
                type,
                data: {
                labels: group.filter(item => item._id !== null && item._id !== undefined && item._id !== '').map(item => item._id.year ? `${item._id.year}년 ${item._id.month}월` : typeof item._id === 'boolean' ? (item._id === true ? "종료": "진행중") : item._id),
                datasets: [{
                    label: '# of Todos',
                    data: group.filter(item => item._id !== null && item._id !== undefined && item._id !== '').map(item => item.count),
                    borderWidth: 1,
                    backgroundColor: '#FFD700',
                    borderColor: '#FFD700',
                }]
                },
                options: {
                    indexAxis: 'y', // 가로방향 그래프
                scales: {
                    y: {
                    beginAtZero: true
                    }
                },
                plugins: {
                    colors: {
                    enabled: true
                    }
                }
                }
            });
        }
        fetchData(email, password, field)
        .then(group => {
            console.log(group)
            displayChart(graphType, group)
        })
    </script>
</body>
</html>

728x90

저작자표시 비영리 변경금지

'프로젝트 > 할일목록(TODO) 앱' 카테고리의 다른 글

할일목록(TODO) 앱 7 - Mongoose virtual 과 moment.js 로 현재 시각 기준으로 시간 표시하기 (0)	2023.08.12
할일목록(TODO) 앱 6 - 데이터 검증하기 (validation) (1)	2023.08.11
할일목록(TODO) 앱 4 - API 설계 및 구현 (0)	2021.10.05
할일목록(TODO) 앱 3 - Mongoose 로 데이터 모델 설계 및 구현하기 (0)	2021.10.05
할일목록(TODO) 앱 2 - 기본적인 서버 설정 및 Mongo DB 연동 (0)	2021.10.05

현재글할일목록(TODO) 앱 5 - chart.js 로 그룹핑한 데이터 그래프로 그리기

250x250

웹개발과 일상에 대해 포스팅하는 블로그입니다.

자바스크립트 배열, node.js 프로젝트, MongoDB, NoSQL, 데이터베이스 쿼리연습, express 배포, 리액트 연습문제, 몽고디비 연동, 리액트 연습과제, 배열, 리액트 스타일링, 노드 프로젝트, 히로쿠 서버, 컴포넌트 스타일링, em, 부트스트랩 연습, Array, 몽고디비, node.js todo, 몽고디비 쿼리연습,

Today :
Yesterday :
